Making mechanical skin
These 3D printed circuits are self-healing, re-writable, and energy-harvesting, thanks to liquid metal.
Soft, stretchable materials that are also electrically conductive are hard to come by. It’s even harder to create a circuit that withstands damage, going as far as to heal itself. For Carnegie Mellon University researchers, however, these kinds of innovations are just another day at the office.
In two recently published papers, teams of CMU researchers made strides in wearable electronics and other soft machines. Carmel Majidi’s Soft Machines Lab (SML) has long been working in this area, and these two papers reflect that.

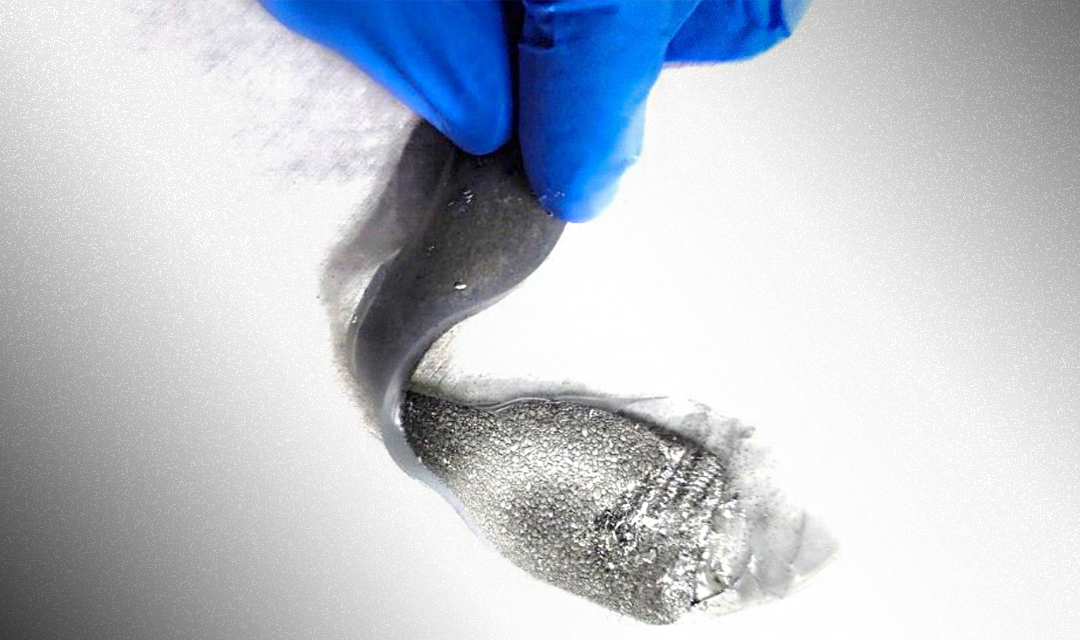

In 2018, Majidi, an associate professor of mechanical engineering, and his team created a circuit that was able to electrically heal itself—that is, it could continue to function even after the main paths had been cut or damaged. Now, they have created a material made with liquid metal that is also able to physically repair damage. When two pieces of electrical liquid metal composites are placed together, they can fuse together in the same way that skin heals after a cut. This innovation allows circuits to withstand more damage because they can simply repair it.
SML achieved these advancements using a liquid metal made of a gallium and indium alloy. This metal is safer than other liquid metals like mercury, authors say. These discoveries allow the technology to be expanded to other polymers, including gels. This widens the range—and effect—of their research. In fact, circuits made with liquid metals can be erased and re-drawn, making them highly adaptable.
These new materials can also be 3D printed. Sarah Bergbreiter, a professor of mechanical engineering, worked with Majidi and SML to print these materials using a new manufacturing process. Creating 3D structures of these self-healing and re-writable circuits will widely expand the range of applications.
One such application is energy harvesting. Energy can be generated using electricity from contact between two surfaces. Imagine, for example, the electricity that makes your hair stand up when you rub a balloon against it. This same principle can be applied to wearable electronics, allowing them to harvest energy from human motion.
What’s more, liquid metals are highly conductive, so they can easily produce large amounts of energy. And, because the electronics are soft and stretchable, they can readily be integrated into clothing.
This is the first time Majidi’s team was able to use their composite to generate energy. When the researchers added the material into a pair of sports shorts, they were able to harvest enough energy from the wearer’s movement to power a hygro-thermometer sensor with digital display (a small wearable computing device).
Applications of this research are far-reaching. Authors say its uses could include bio-inspired robotics, human-machine interaction, wearable computing, and solar cells. These soft robotics will be highly adaptable and durable, allowing for a wide range of applications.
The paper titled “Controlled Assembly of Liquid Metal Inclusions as a General Approach for Multifunctional Composites” was published in Advanced Materials in October 2020. Authors include postdoctoral scholars Michael Ford and Dinesh Patel, MechE Ph.D. student Chengfeng Pan, Professor Sarah Bergbreiter, and Associate Professor Carmel Majidi. The paper titled “Ultrastretchable, Wearable Triboelectric Nanogenerator Based on Sedimented Liquid Metal Elastomer Composite” was published in Advanced Materials Technologies in September 2020. Authors include Chengfeng Pan, Michael Ford, Carmel Majidi, and materials science and engineering master’s student Dongye Liu.
